Is the MoonBoard suitable for you?

Grades range from 5+/V2 to 8b+/V14 depending on which set up you choose. Download the app, select the various different setups and have a look at the range of problems and grades to see if the Moonboard is right for you.



How much space do you need?

We offer the MoonBoard in two sizes, the Mini MoonBoard and the Standard MoonBoard. The Standard MoonBoard with the frame (see Freestanding MoonBoard below) requires the most space. Please note that if you include the MoonBoard Pad System with your Freestanding MoonBoard, the width requirement increases to 3660mm.



Metric

  Freestanding MoonBoard Standard DIY MoonBoard Mini DIY MoonBoard
  40° 25° 40° 25° 40°
Height (mm) 3554 4100 3174 3688 2240
Width (mm) 2440 2440 2440 2440 2440
Depth (mm) 4860 4860 2353 1547 1569

Imperial

  Freestanding MoonBoard Standard DIY MoonBoard Mini DIY MoonBoard
  40° 25° 40° 25° 40°
Height (inch) 11’7” 158” 10'42" 12’1” 7'4"
Width (inch) 8' 8' 8' 8' 8'
Depth (inch) 15’9” 15’9” 7’8” 5’1” 5’1”




Which hold setup should you choose?

The setup that you choose is a matter of personal choice. Download the MoonBoard App and have a look at the different setups and the problems each one has, to get an idea of which setup works best for you.



Handholds

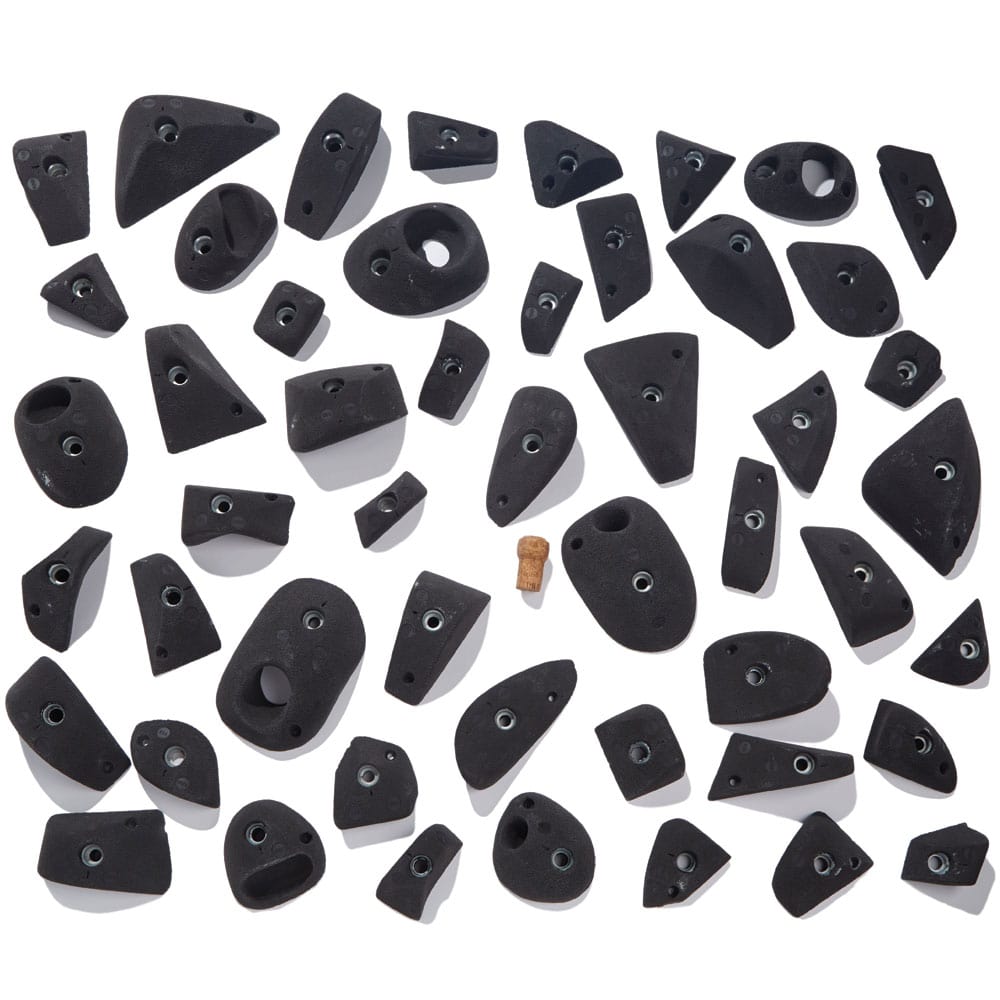

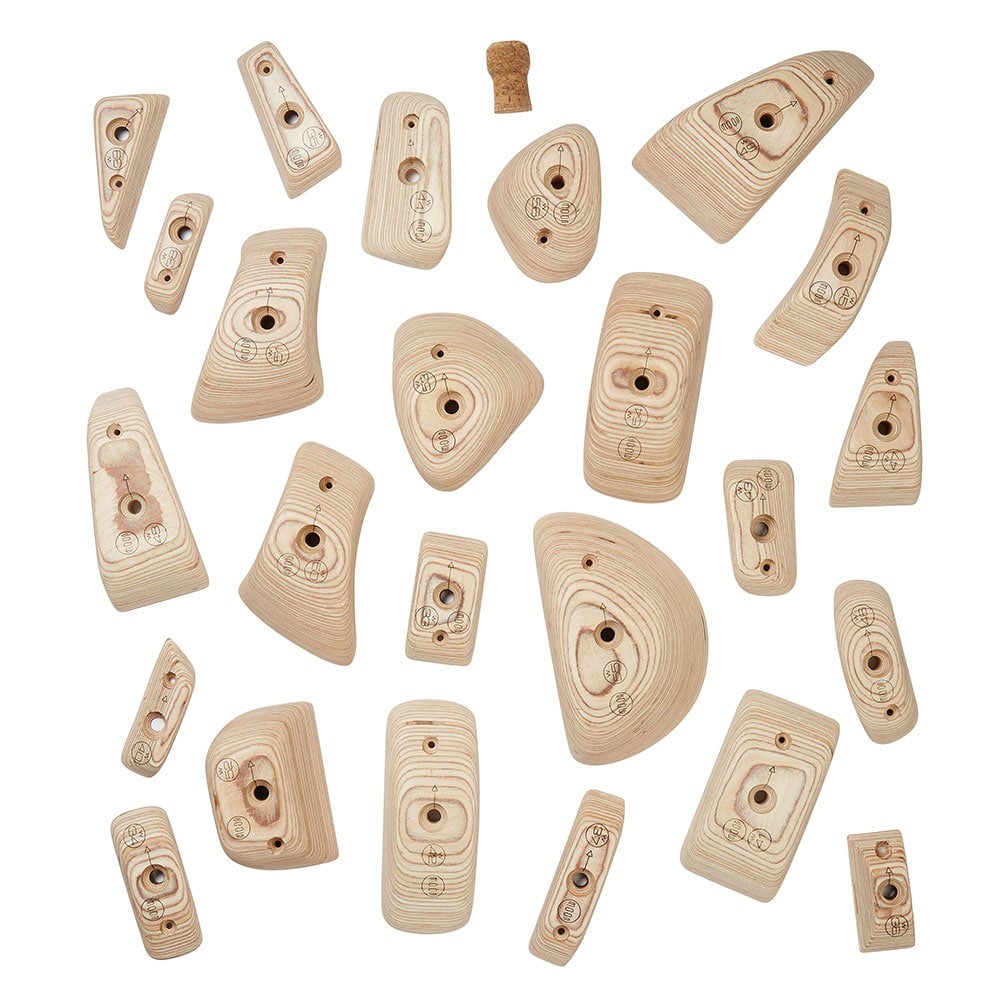

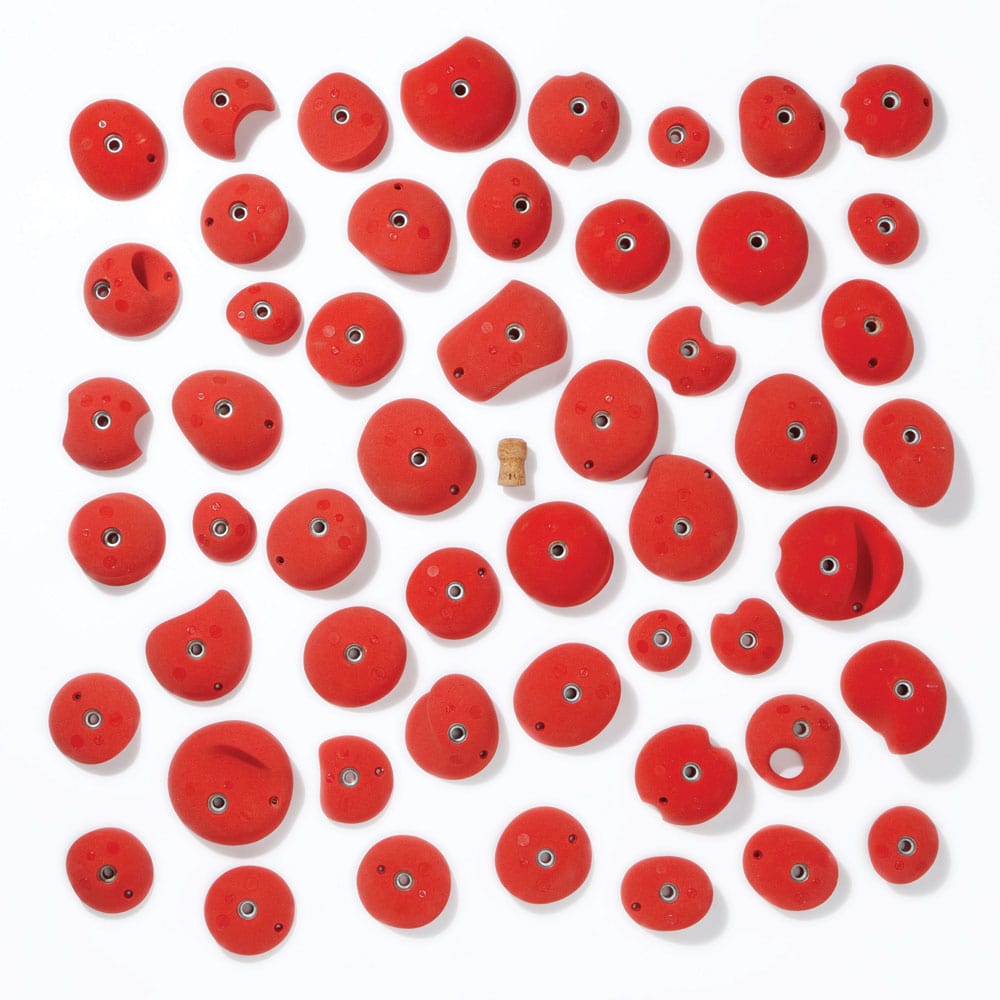

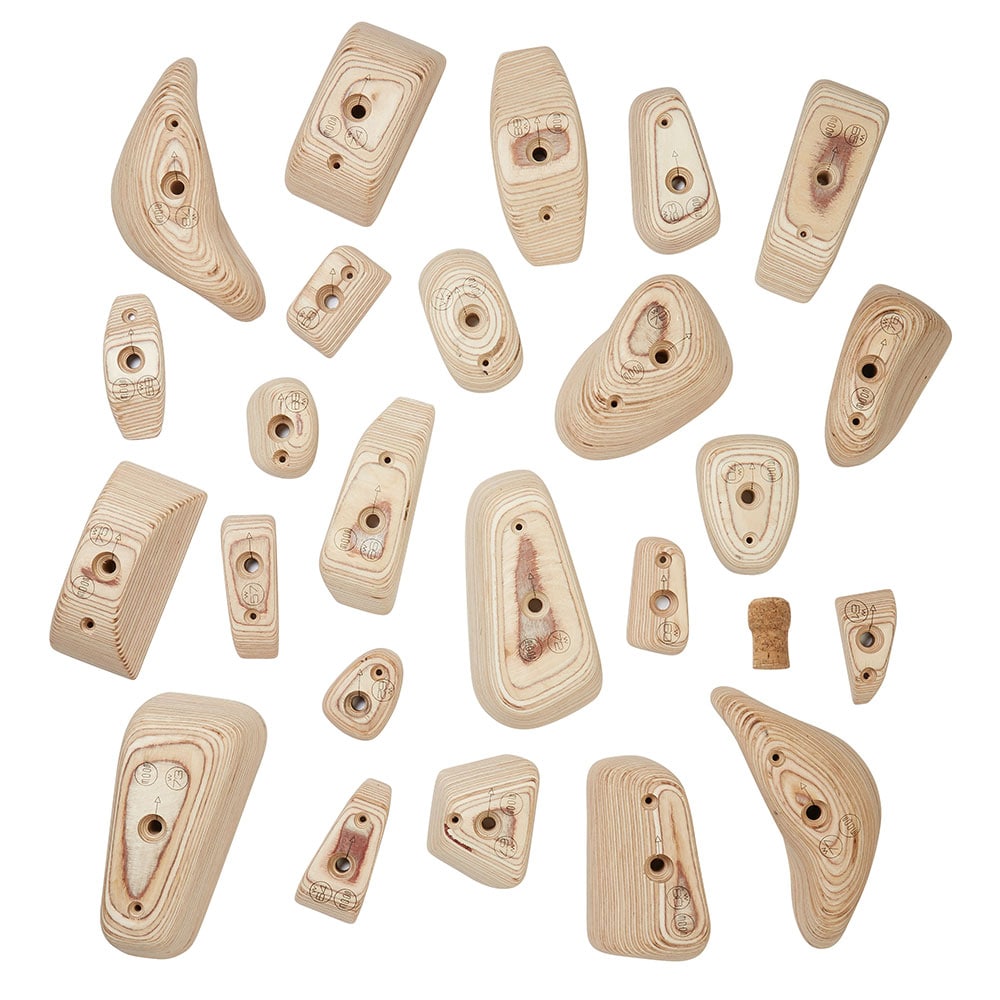

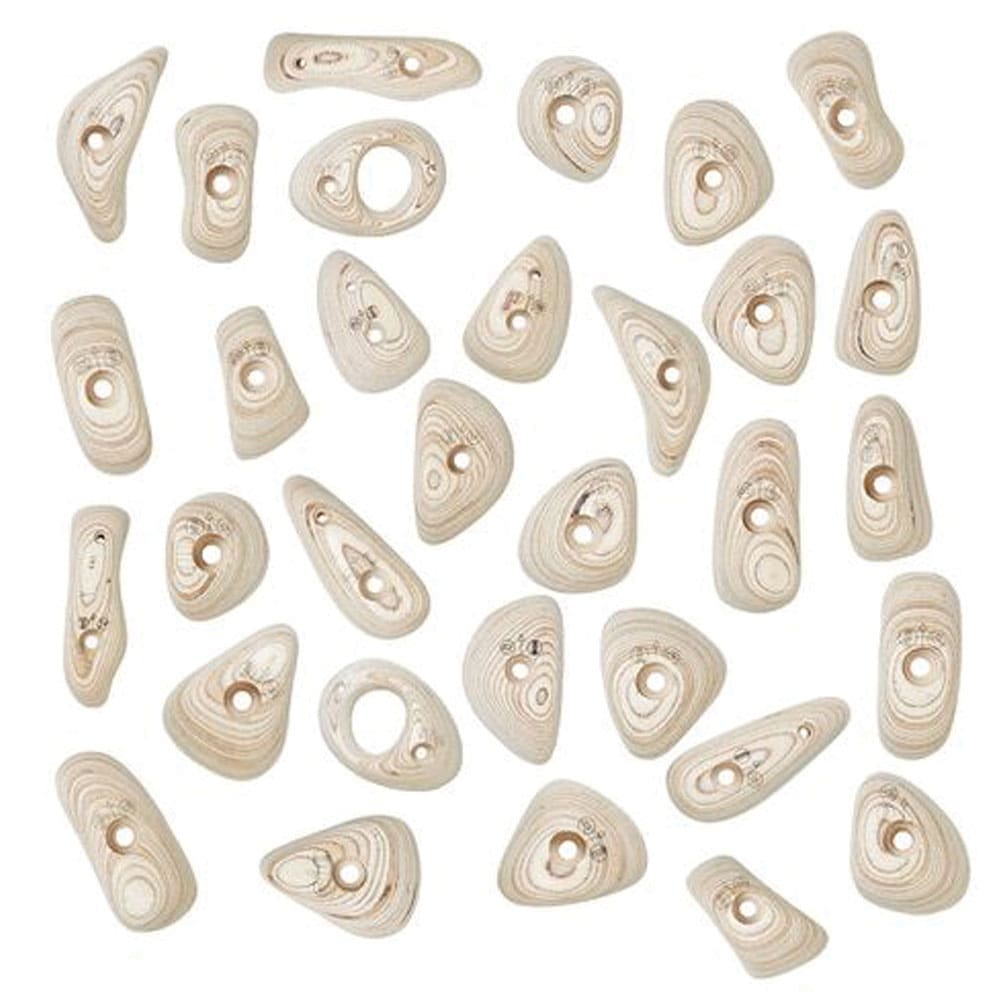

Each hold is designated to a specific coordinate and rotation on the MoonBoard according to your chosen hold setup. Each MoonBoard hold set offers a different selection of hold shapes and climbing difficulty. Some hold sets feature in all MoonBoard setups, while the more recent hold releases only feature in new setups. For advice on which hold set you should choose for your MoonBoard, join the official MoonBoard Climber's Network group on Facebook. It's the perfect way to connect to other users around the world and find the answers to your questions. Download the app.

Footholds

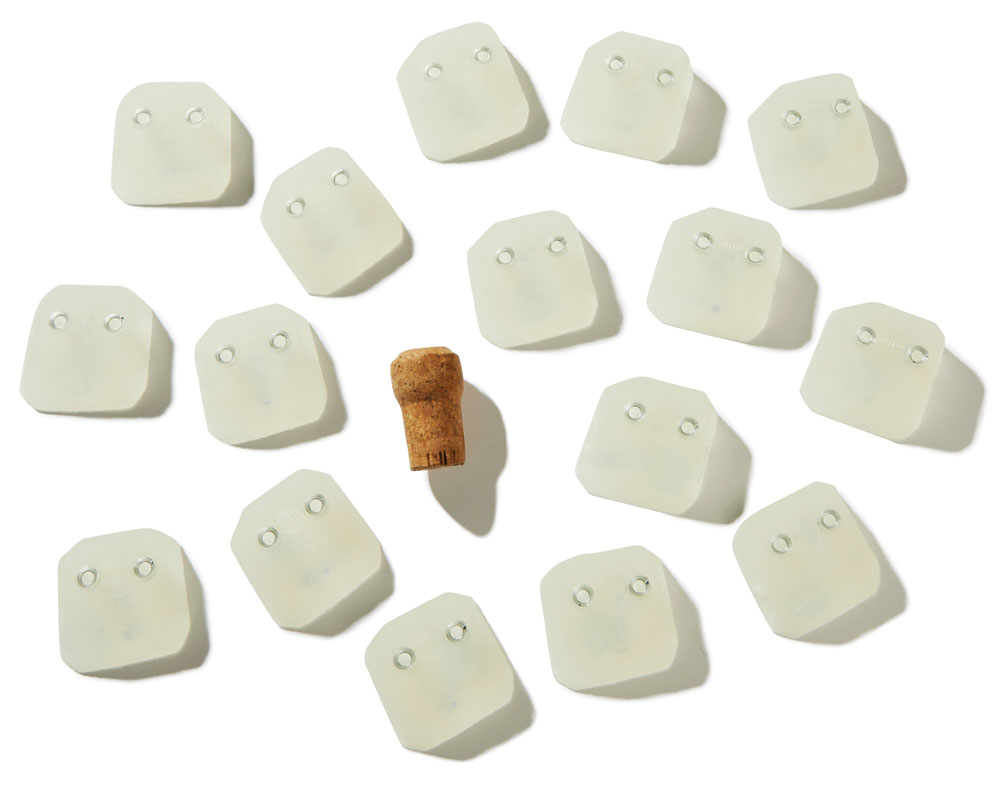

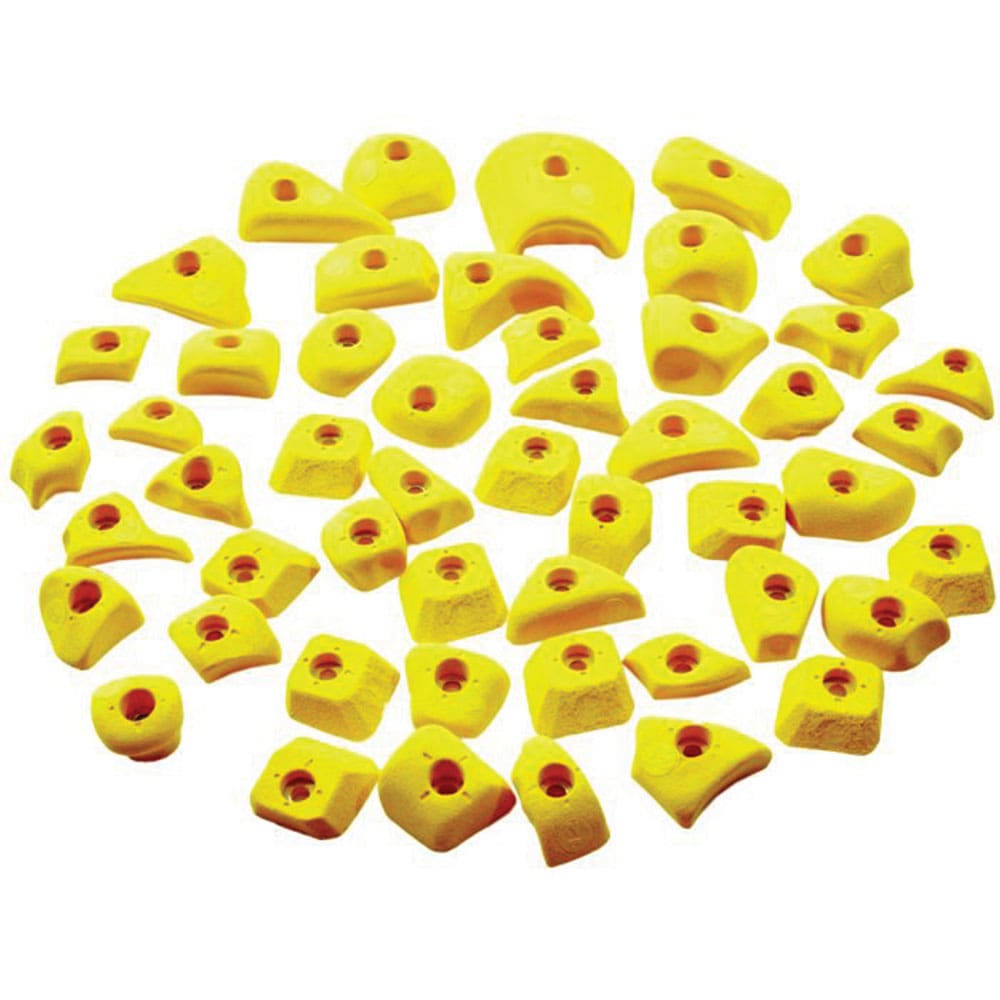

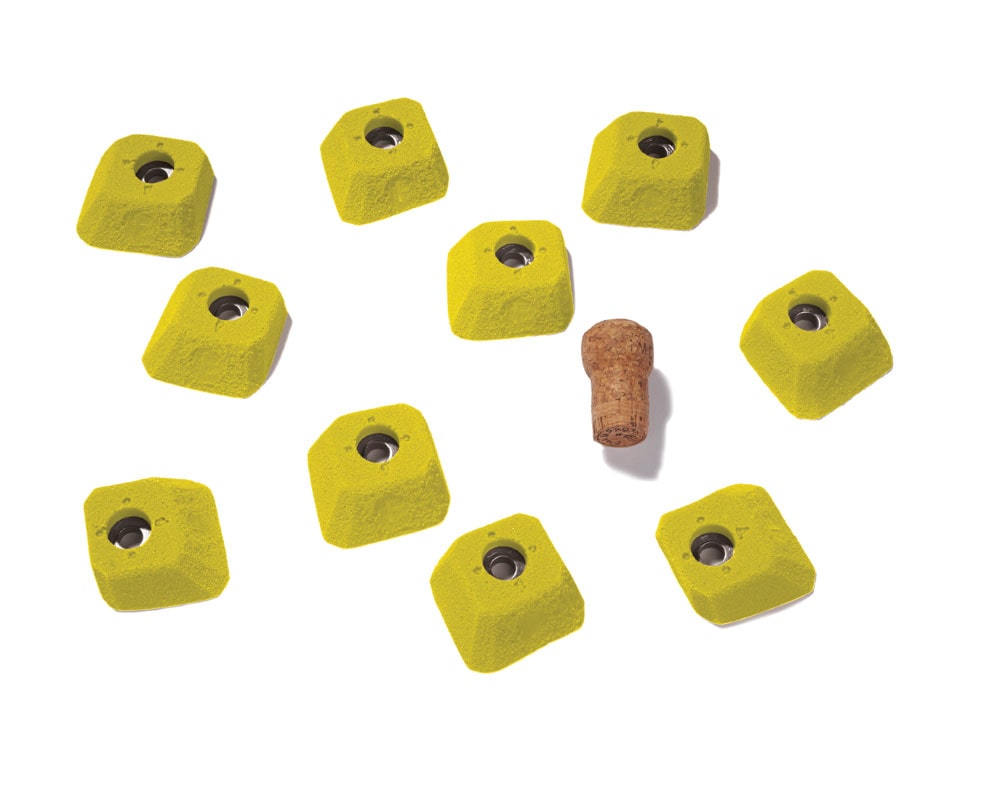

Two sets of different footholds are available for use on the MoonBoard: the required yellow bolt-on footholds which are to be set on the kickboard; and the optional translucent screw-on footholds for use on the main panels. There are four different foothold rules in the MoonBoard app: Feet follow hands Feet follow hands + Screw-Ons* Footless (Kickboard footholds are allowed to start)* Screw-Ons only* When setting a problem you may select the foothold rule that is appropriate to your climb. This rule will then be visible to other users when viewing the problem. * These rules are not available on the 2016 setup. Download the app.



See below for the handholds and footholds available.



Handholds and Footholds

Options

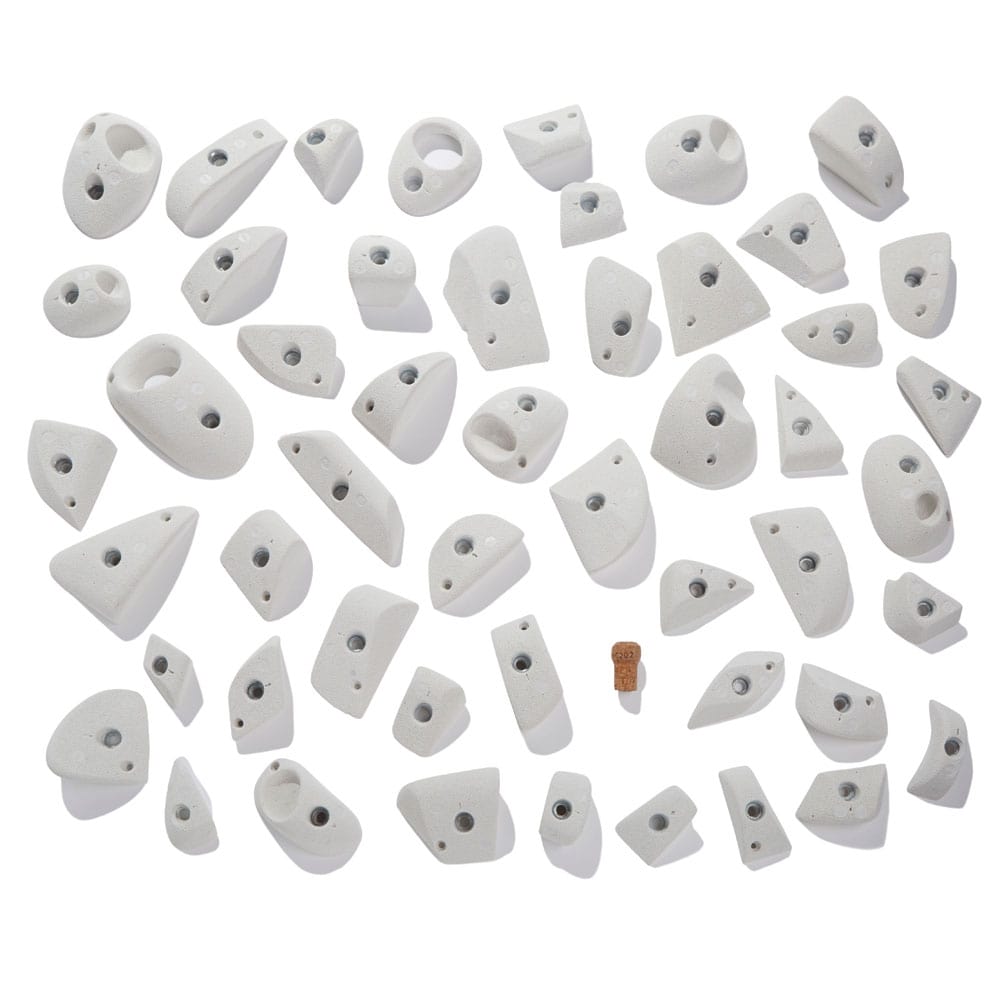

Handholds

Footholds

Which angle should you choose?

The 2016 and 2020 MoonBoard hold setups are offered in one angle only, 25°. The other setups are offered in two angles: 25° and 40°. Opting for the steeper 40° angle demands greater strength and power and a dynamic approach to climbing compared to the 25° angle. The 25° angle increases the emphasis on footwork, making it generally more accessible for training purposes.



Which MoonBoard build option should you choose?

There are two ways to get your MoonBoard:



Option 1

The easiest method is to purchase one of our official build kits, which include all the MoonBoard holds, the LED System, and ready-to-install panels. There are two choices of build kits:



Choose from:



Freestanding MoonBoard Kit (not available in the Mini MoonBoard) This option includes everything you need, including the frame, all the setups, and is also available to purchase with our compatible MoonBoard Pad System, or



MoonBoard DIY Kit Choose the setup you want for your MoonBoard and buy the corresponding DIY Kit, for example the MoonBoard 2016 DIY Kit or the MoonBoard 2017 DIY Kit. (Note that this method will require you to build your own frame. You will find the frame specifications under Building Your MoonBoard.)



All MoonBoard DIY Kits come with clear instructions for easy assembly. You will find the frame specifications under Building Your MoonBoard.



Option 2

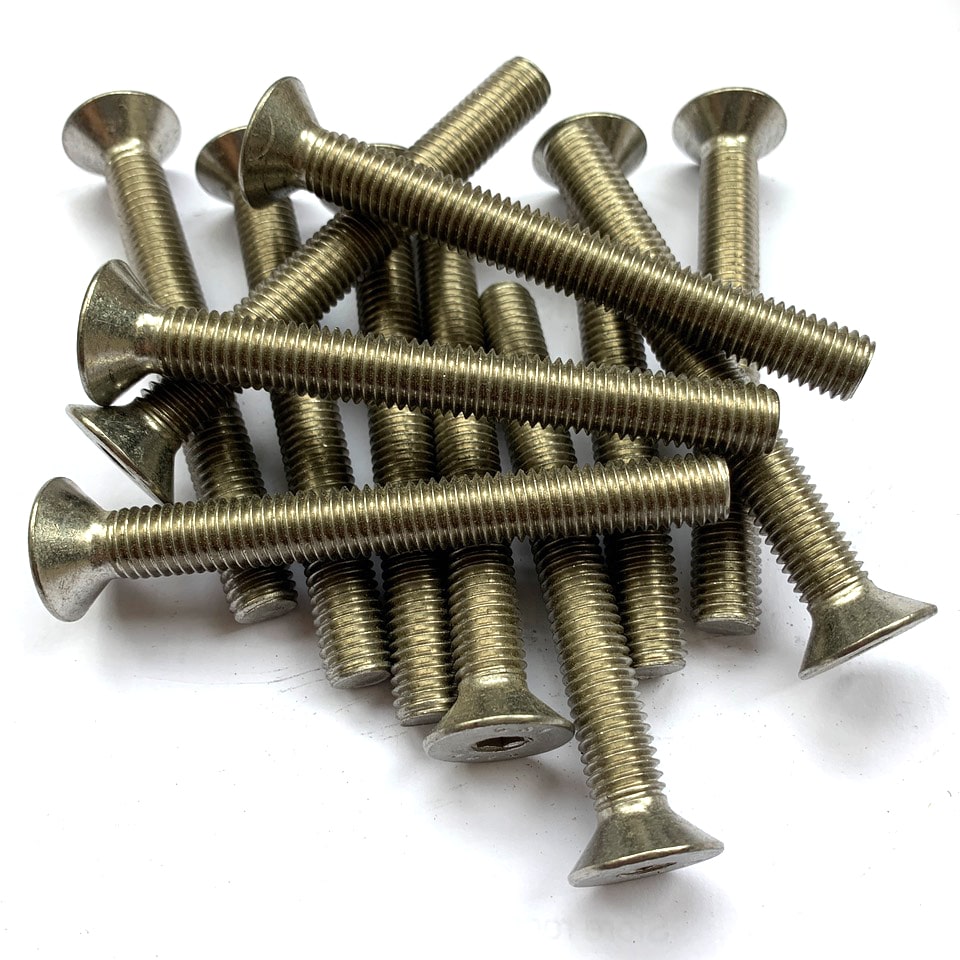

Alternatively, you can buy all the individual MoonBoard components (holds, LED System, bolts and t-nuts), without the panels. Choose the setup you want for your MoonBoard, for example the 2016 or 2017 setup, and buy the hold sets for that setup. (Note that this method will require you to build your own frame and panels. You will find the frame and panel specifications under Building Your MoonBoard.)



Can you have more than one MoonBoard?

Having multiple MoonBoards in the same location is possible. However, if you decide to install multiple LED MoonBoards in the same location, it's important to note that unless you opt for a V3 LED MoonBoard System, you'll need to get in touch with Moon Climbing to ensure compatibility between each LED system.
